Manufacturing
From tooling to dispatch on one site
Xuntao works from a 2,000 m² site in Changzhou, Jiangsu, with four workshops. Tooling, injection molding and assembly sit close together, so each project stays with the same team.
Site at a glance
- Production site
- 2,000 m²
- Workshops
- 4
- Tooling lines
- 2
- Automated injection production line
- 1
Step 01
Tooling
Machining for the tools that shape each new part.

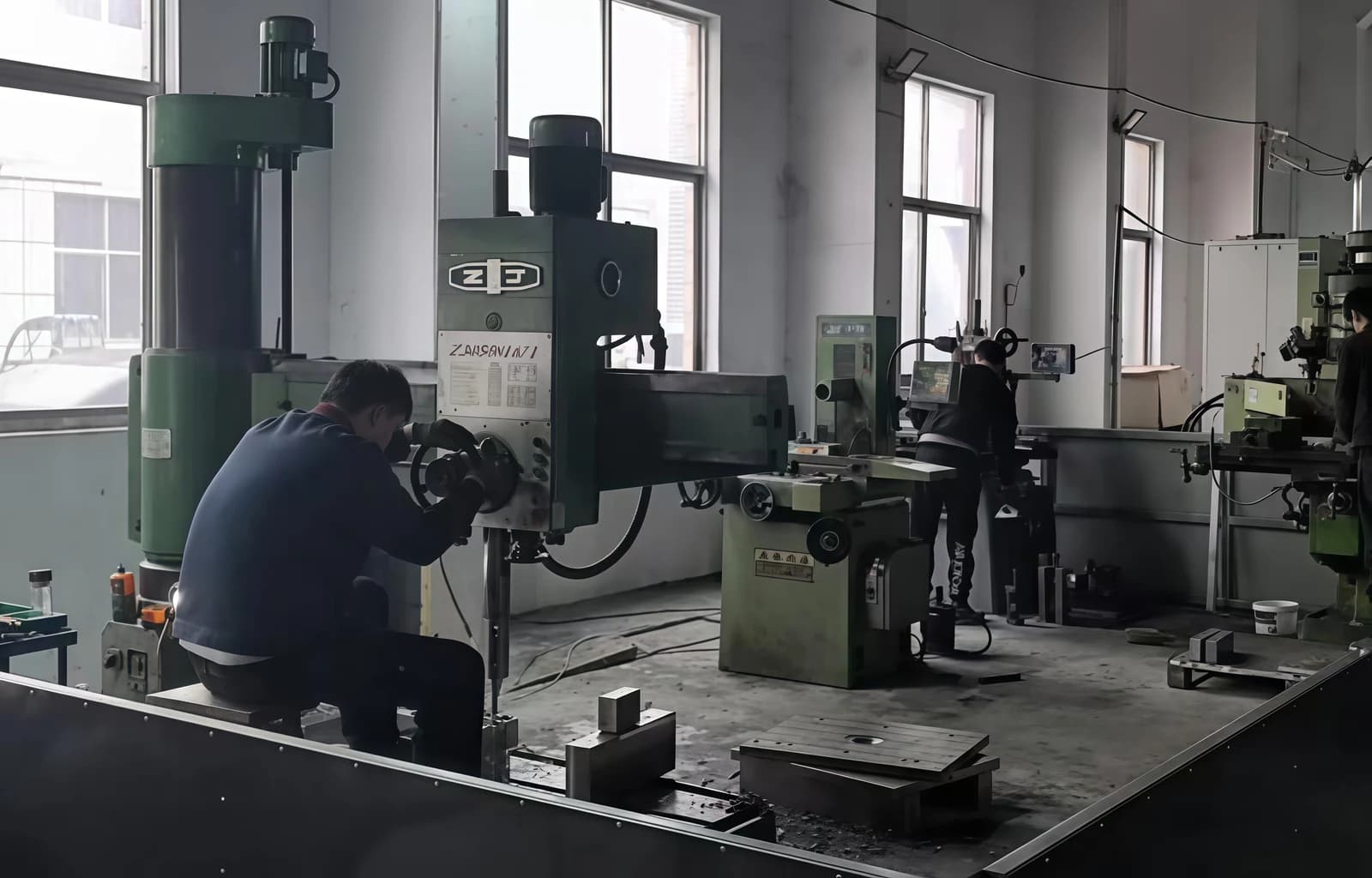

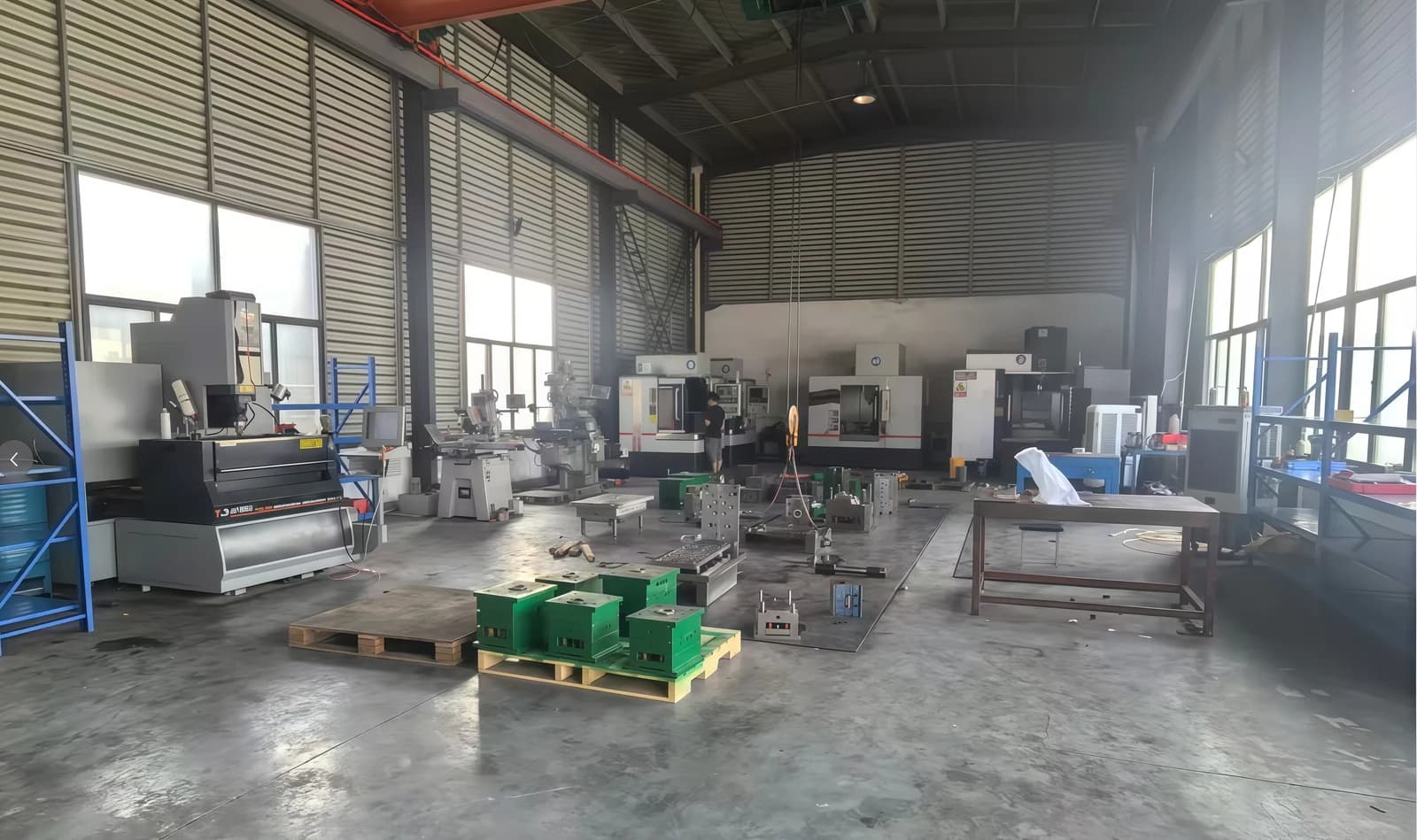

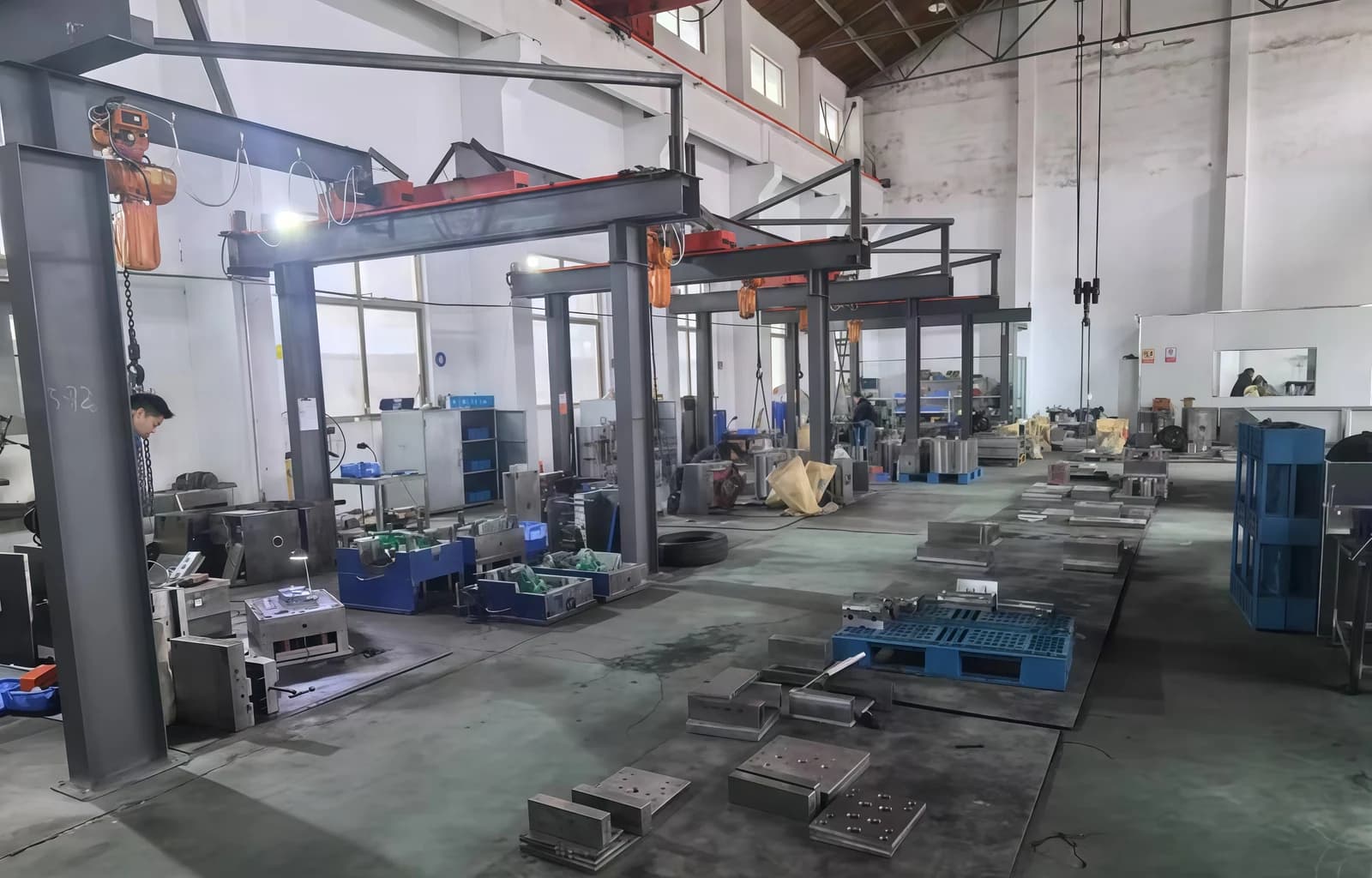

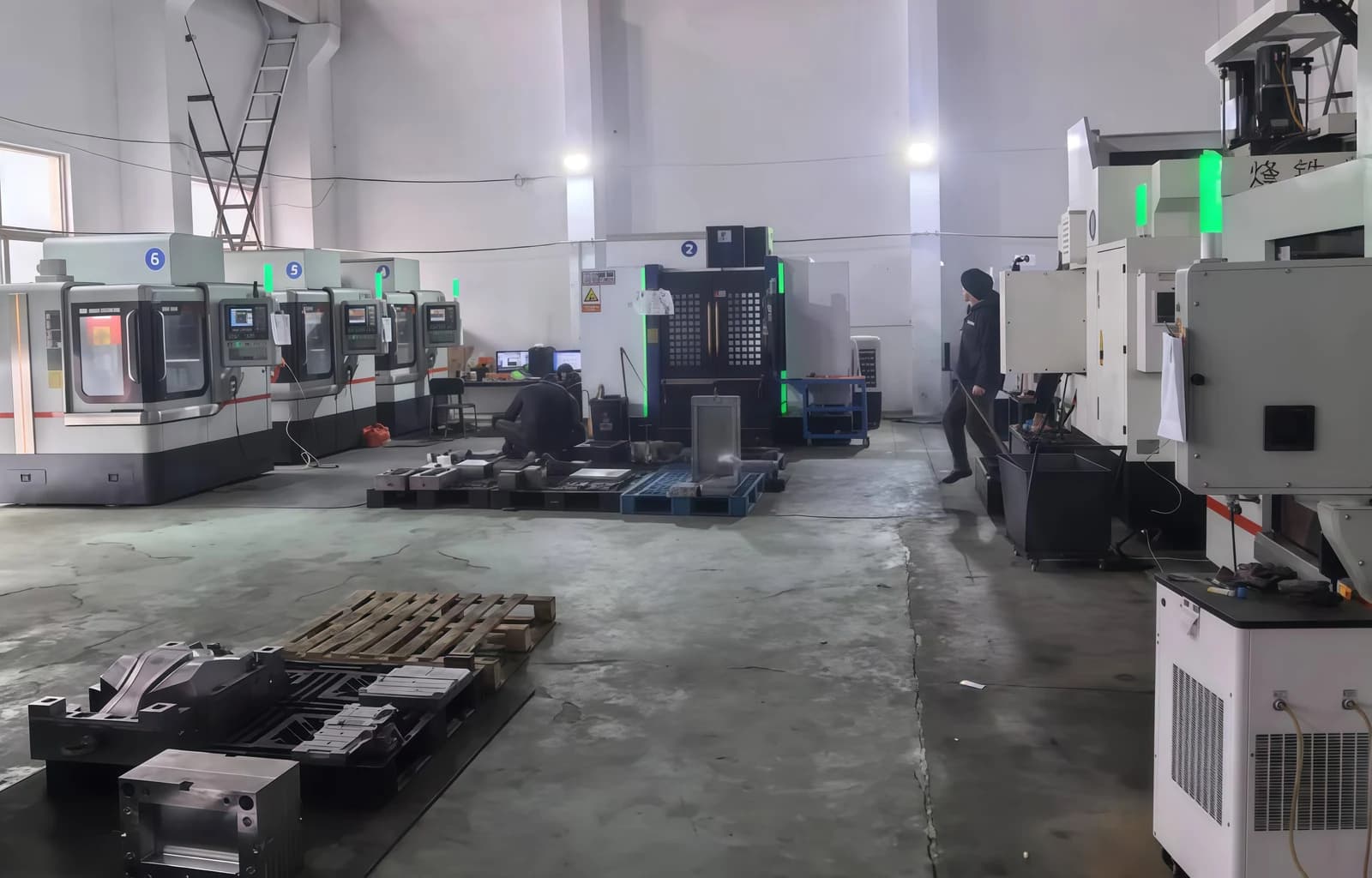

New components start with tooling. Our tooling workshop machines the tools that the injection line later uses to form each part.
Tooling is project-dependent and is charged for new samples. We review your drawings and requirements first, then confirm the tooling approach with you.
- Tooling lines
- 2
| Equipment | Quantity | Notes |
|---|---|---|

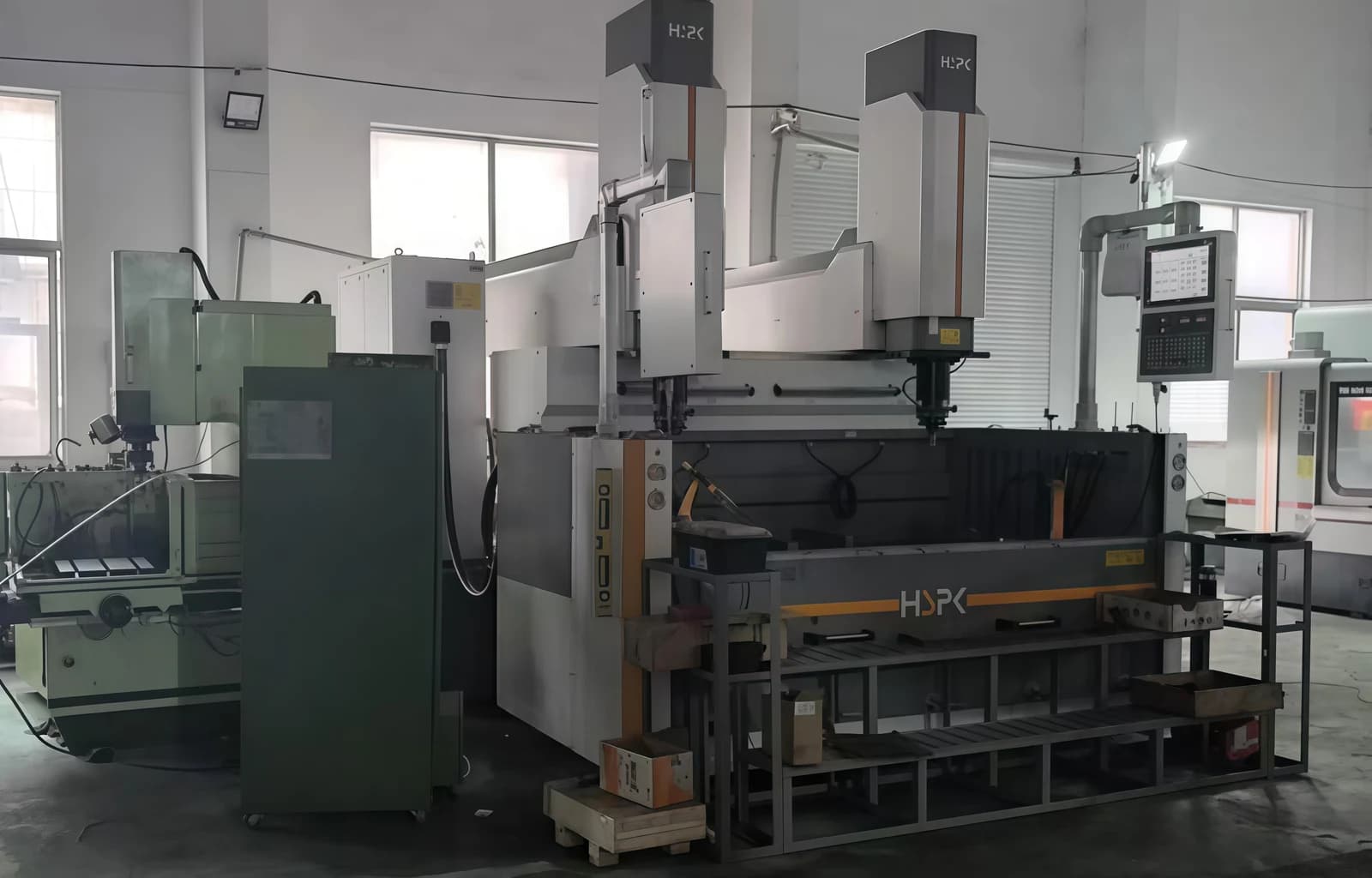

| Twin-head electrical discharge machine · 汉霸 | 1 | Maximum machining size: 1600 × 850 mm |

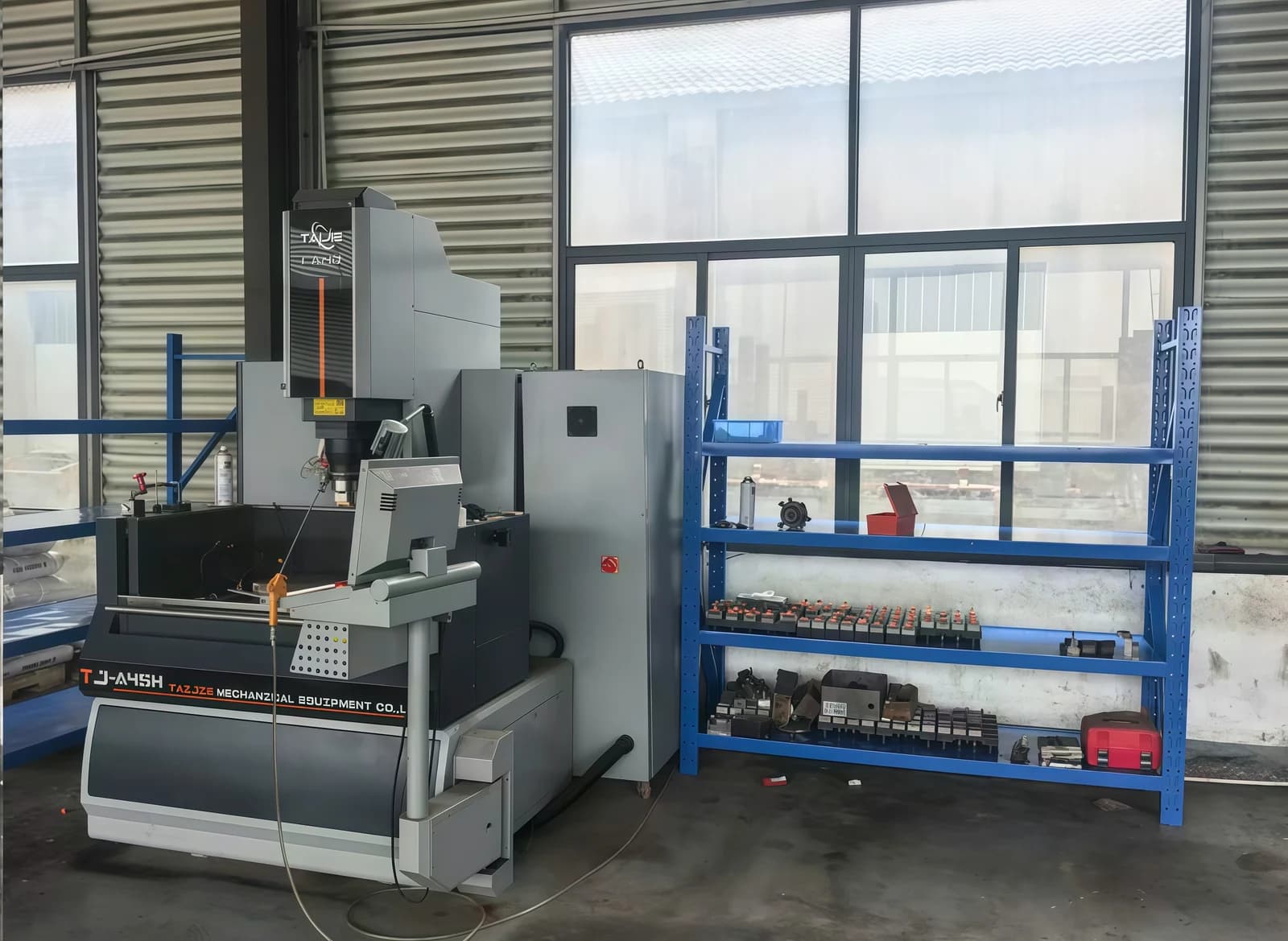

| Electrical discharge machine · 台捷 | 1 | Maximum machining size: 450 × 450 mm |

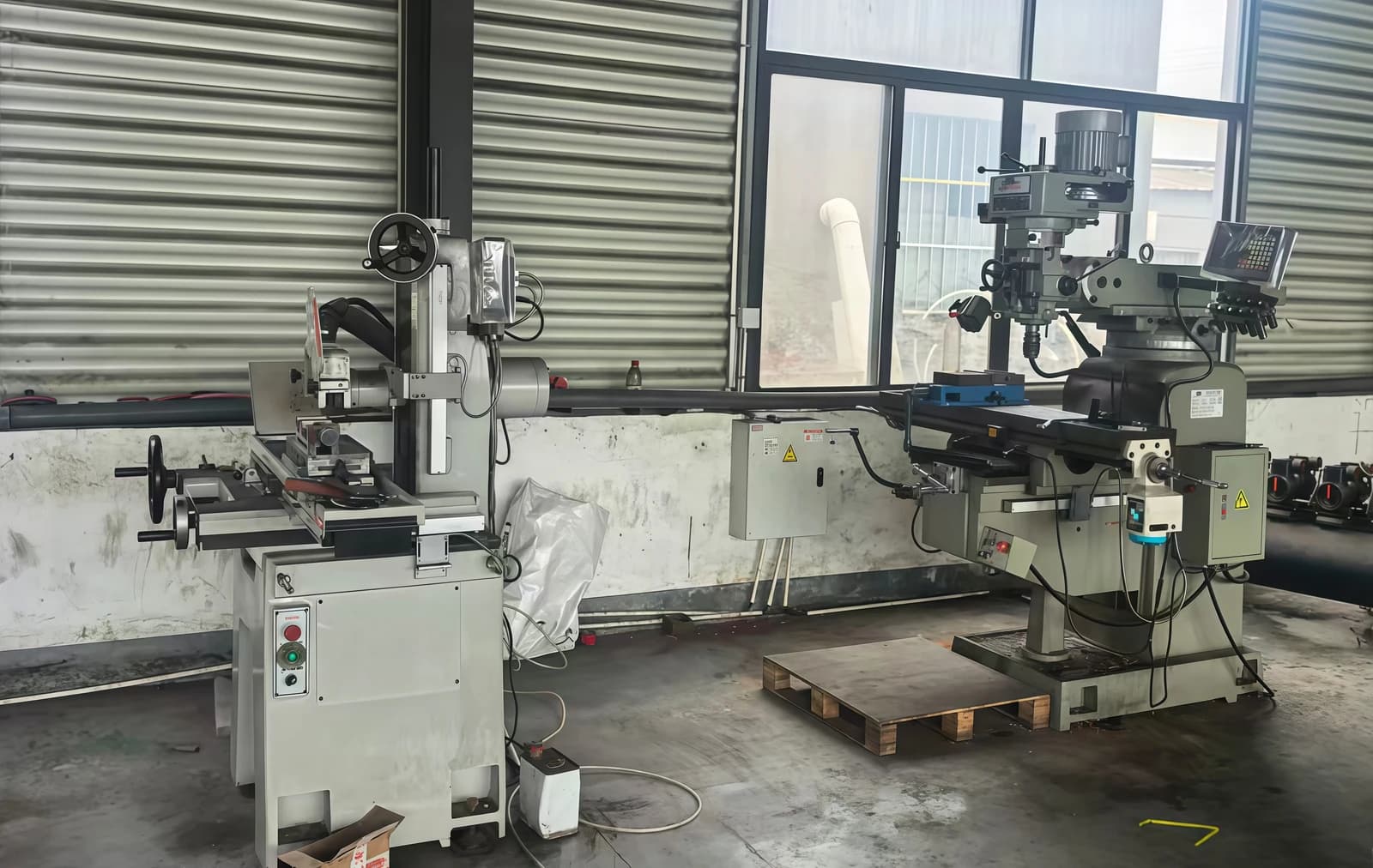

| Milling machine · X-3 | 2 | Maximum machining size: 300 × 600 mm |

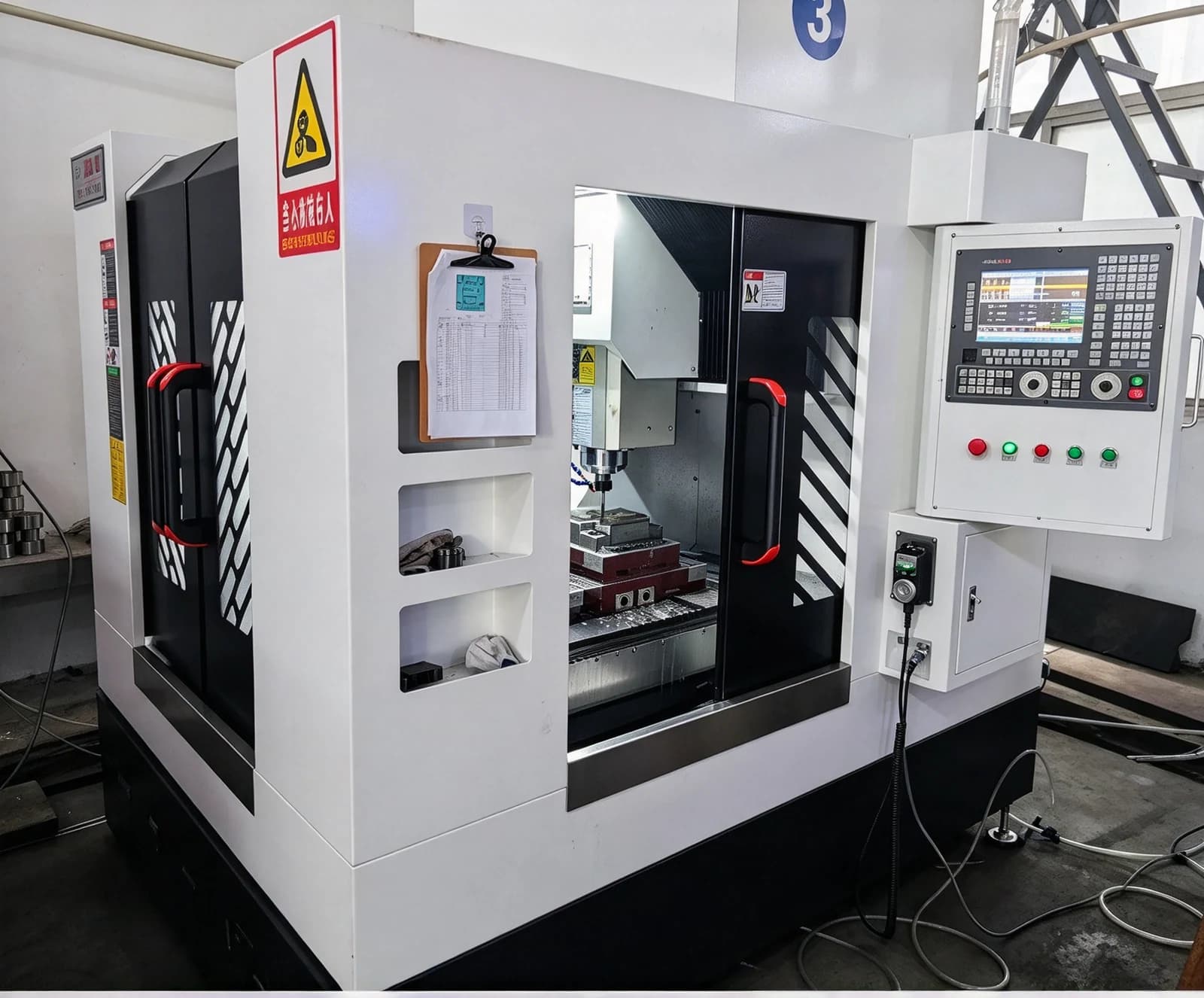

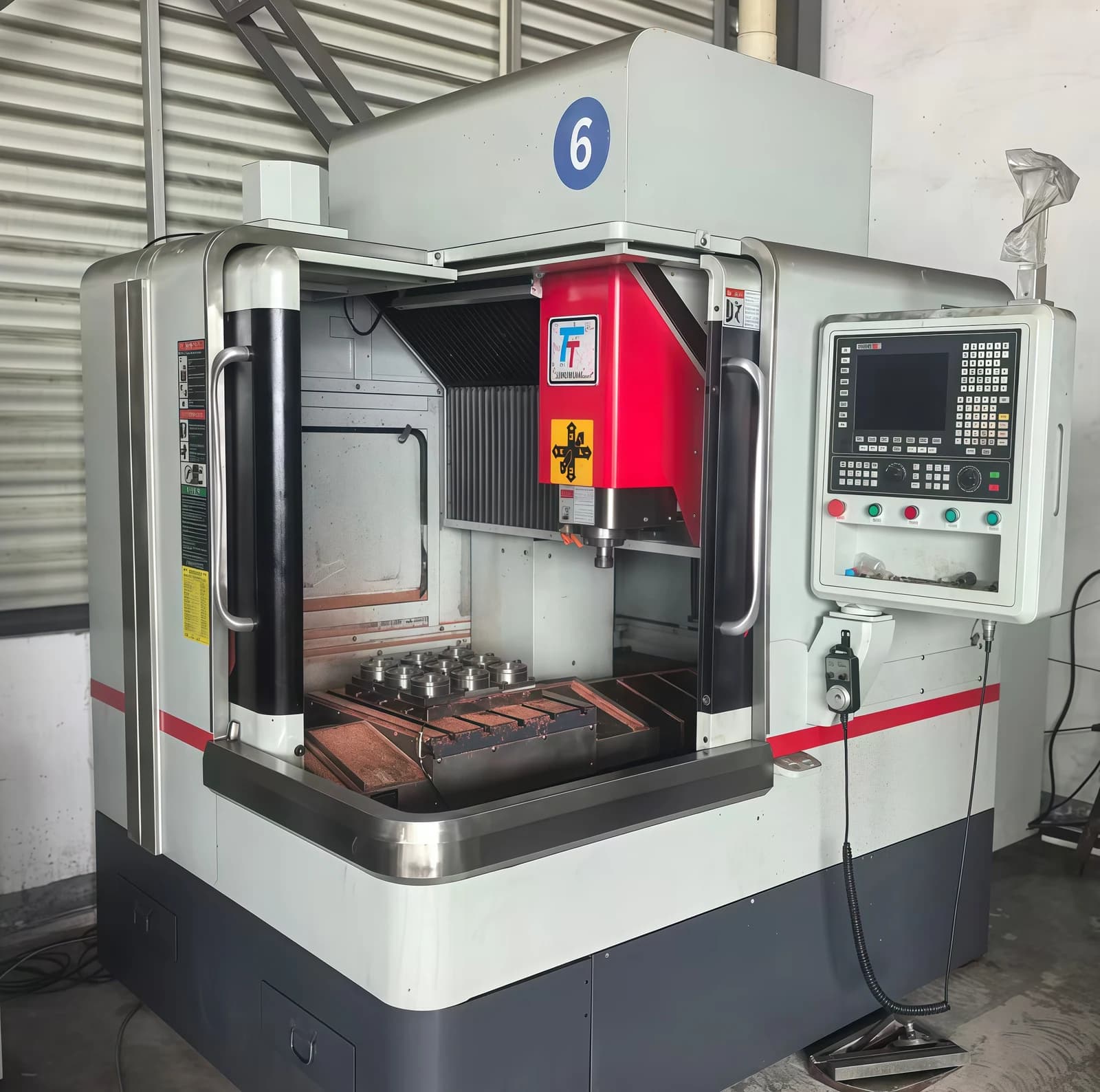

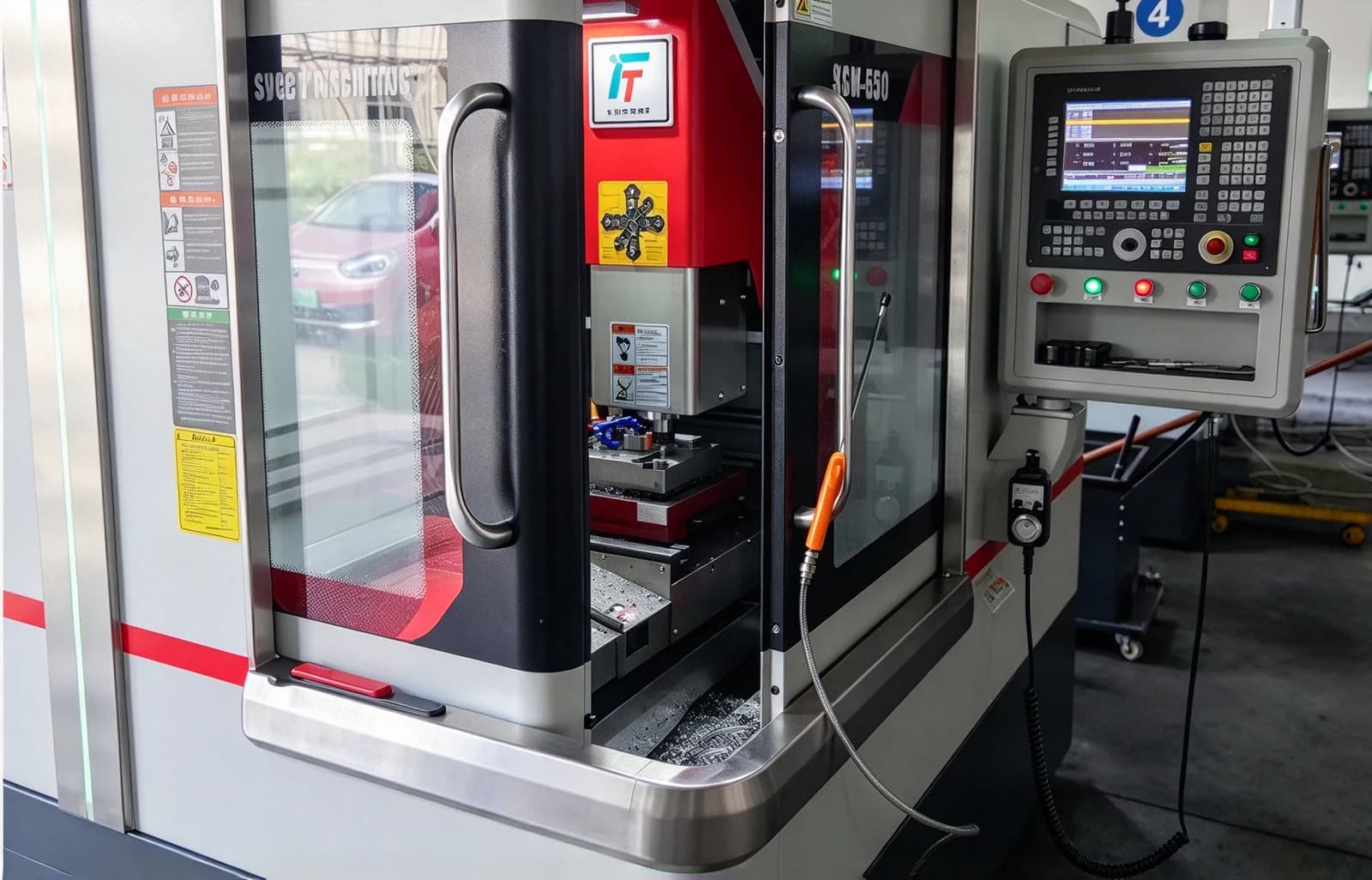

| High-speed engraving and milling machine · HSC-870 | 1 | Maximum machining size: 800 × 700 × 400 mm |

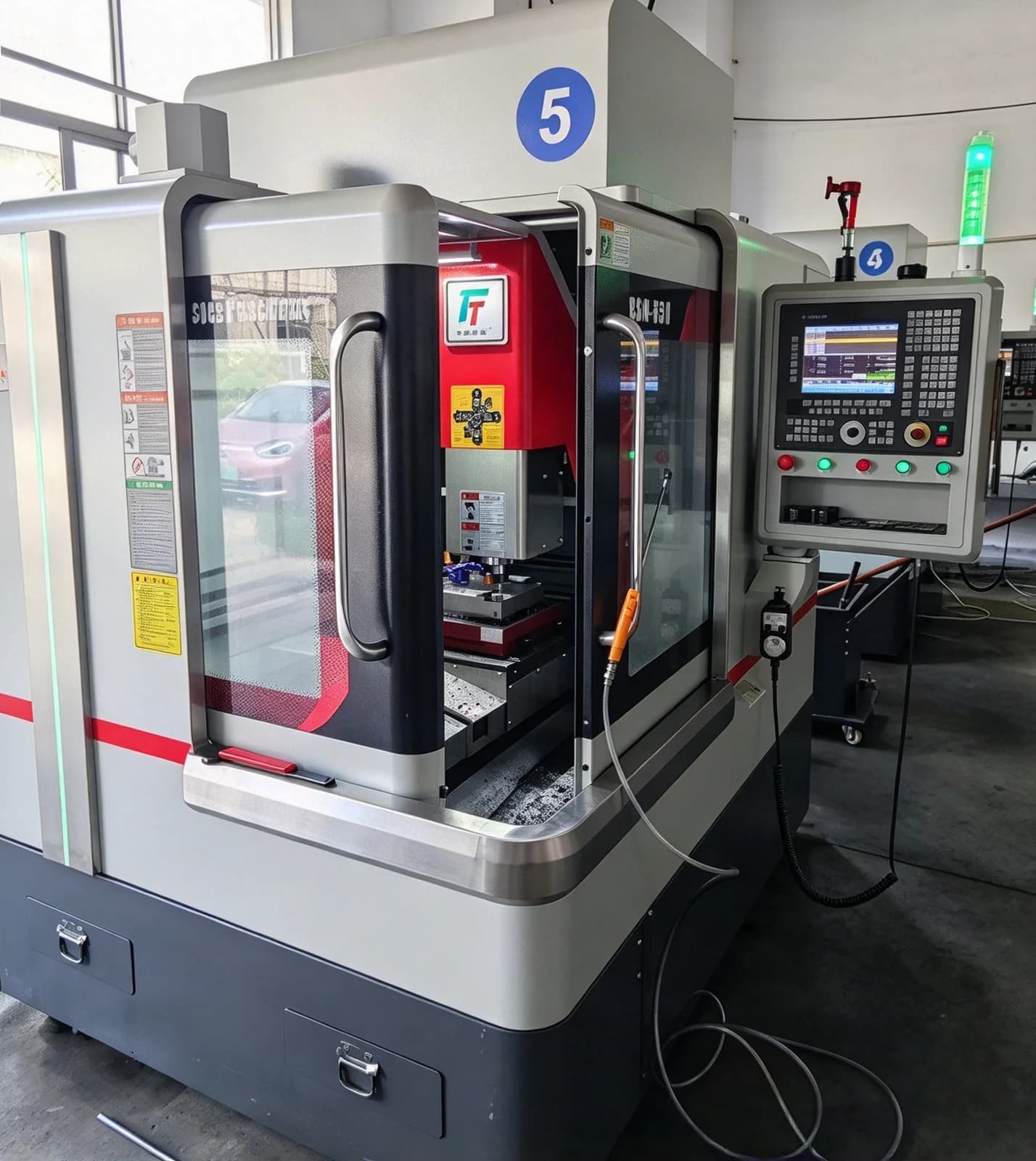

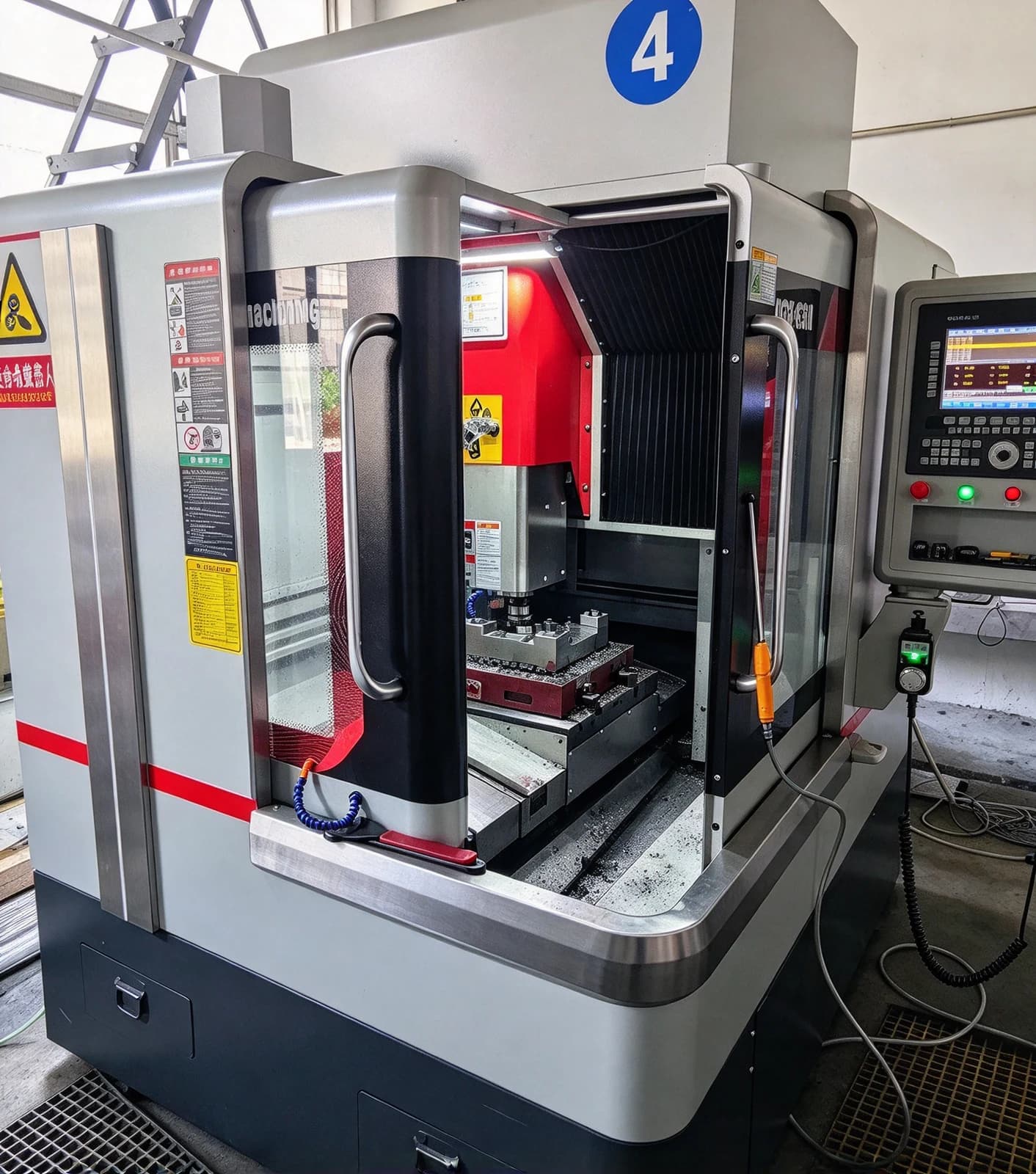

| High-speed engraving and milling machine · HSC-650 | 2 | Maximum machining size: 600 × 500 mm |

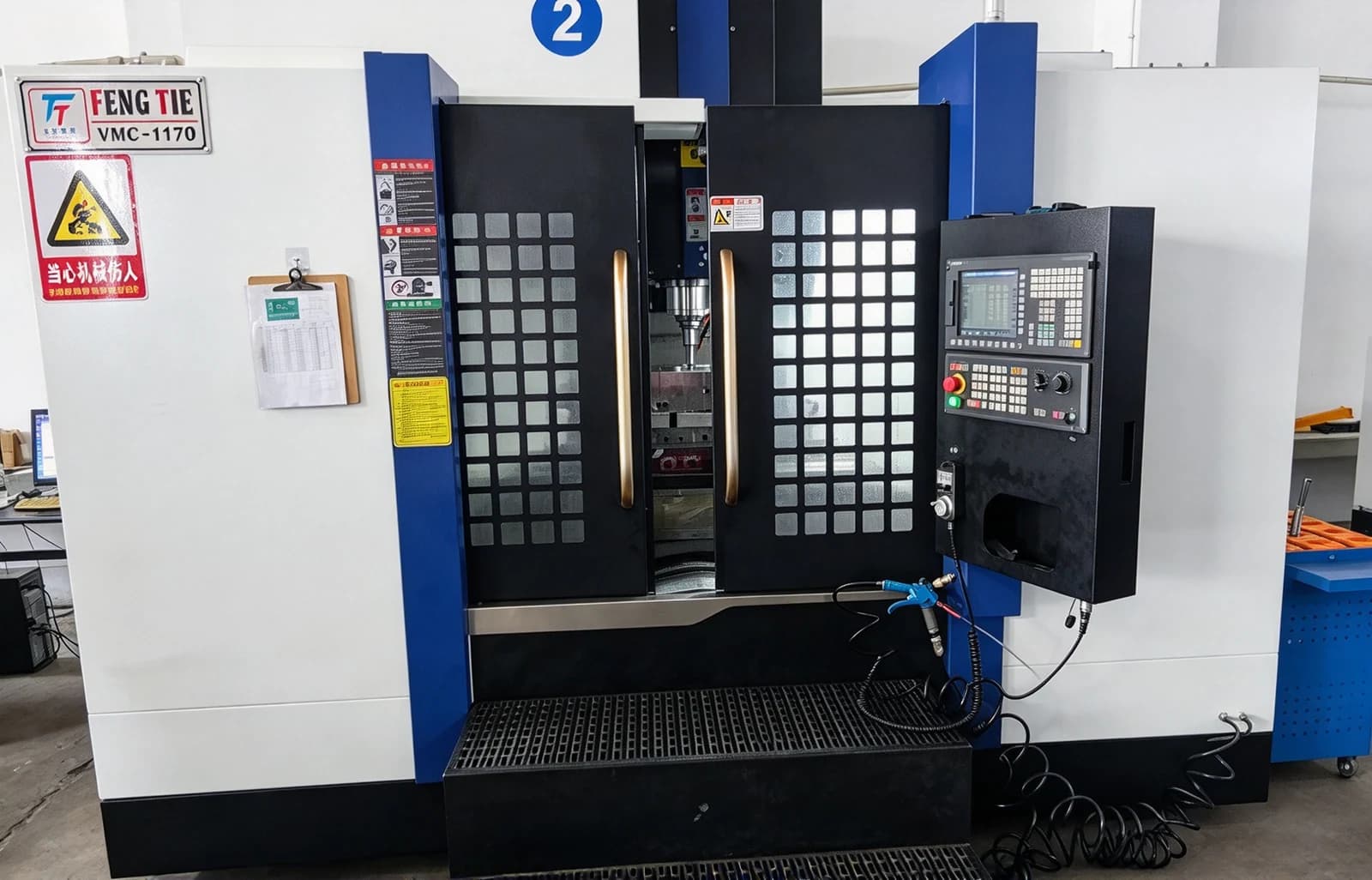

| High-speed milling machine · HSC-1170 | 1 | Maximum machining size: 1100 × 700 × 610 mm |

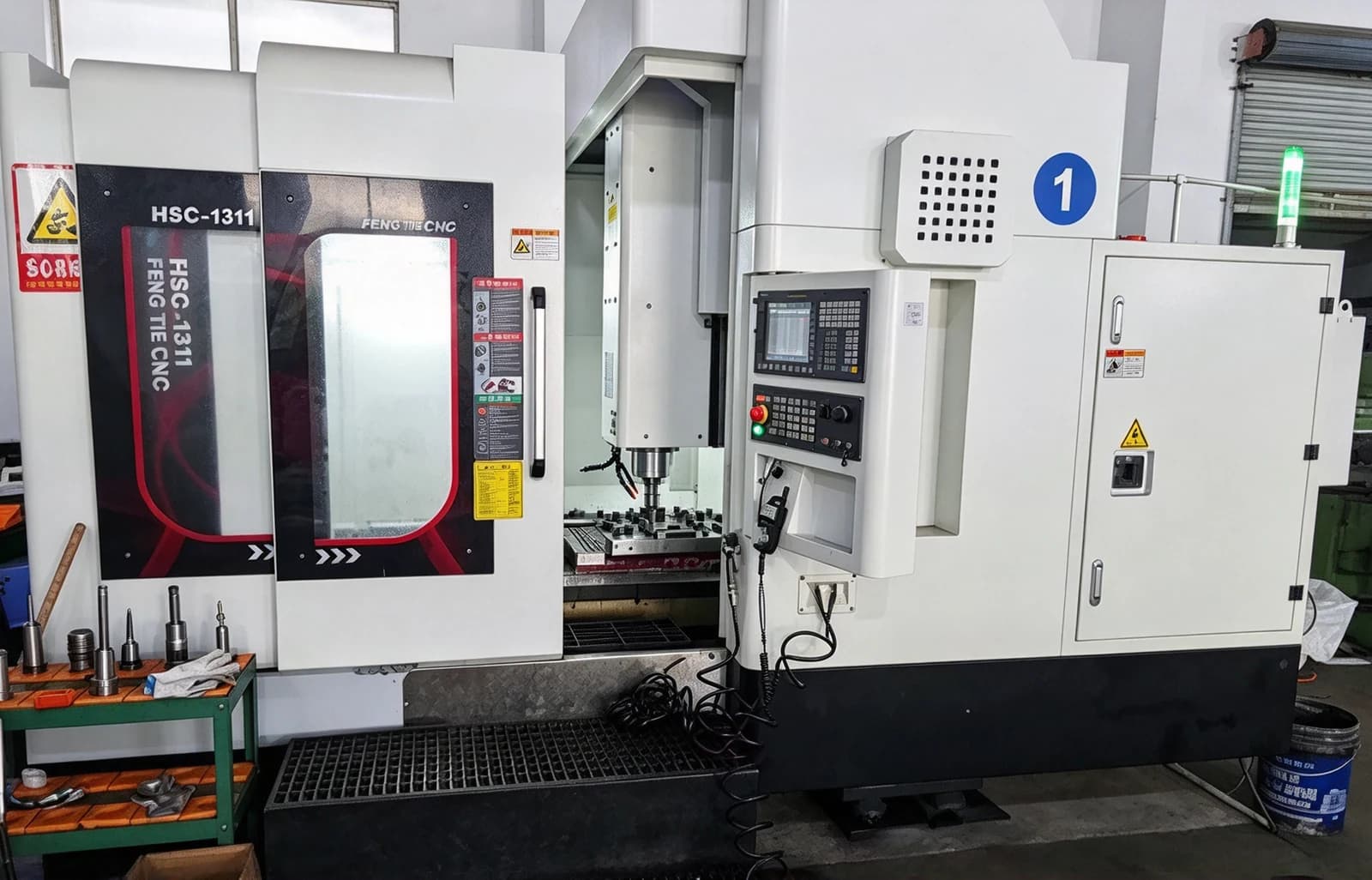

| High-speed milling machine · HSC-1311 | 1 | Maximum machining size: 1300 × 1100 × 800 mm |
| Precision engraving machine · TXC-650 | 2 | Maximum machining size: 450 × 550 mm |
| Copper electrode engraving machine · HSC-650 | 1 | Fixture supports machining nine electrodes in one setup |
Step 02
Injection molding
An automated injection production line for repeatable parts.

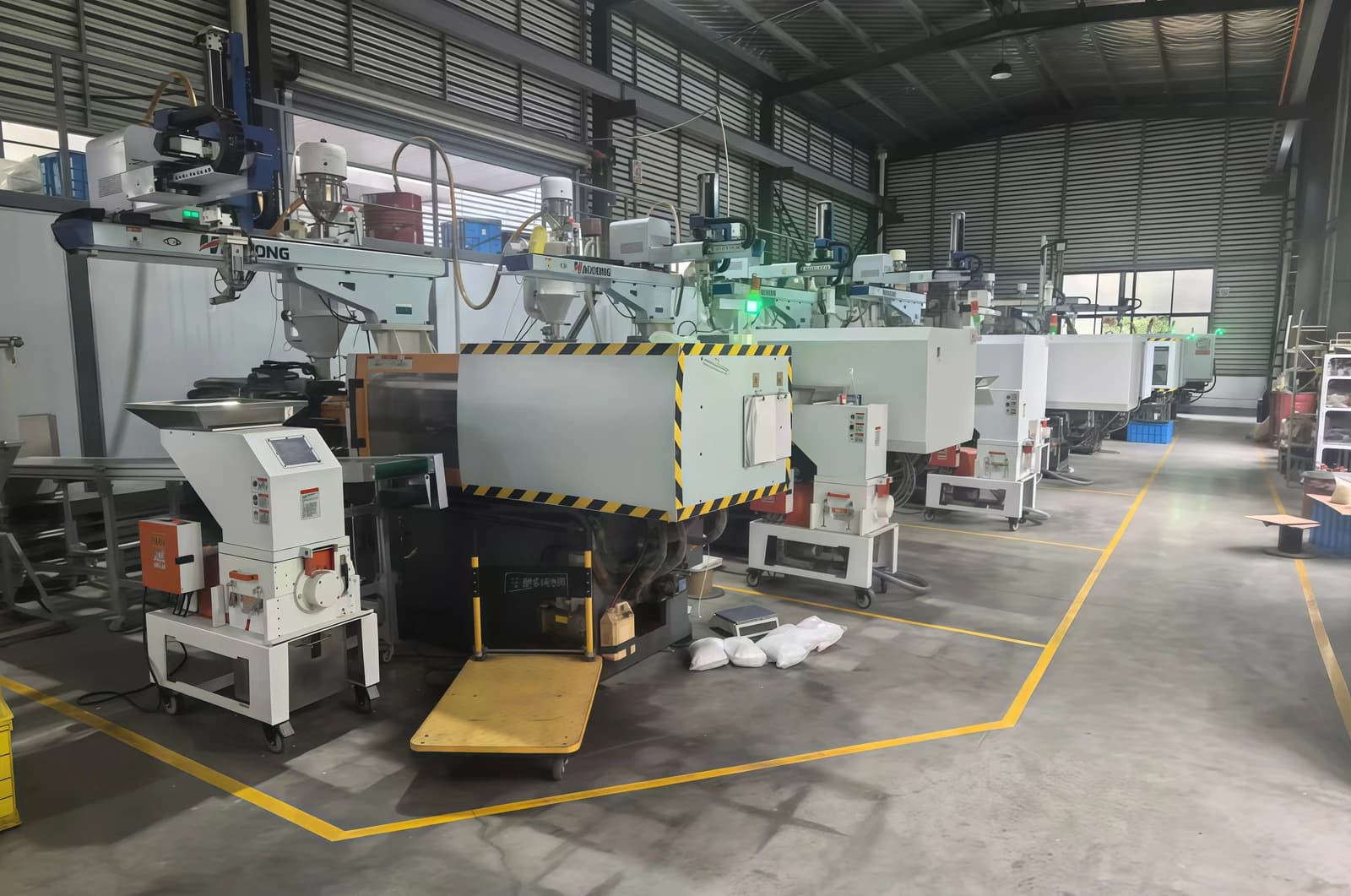

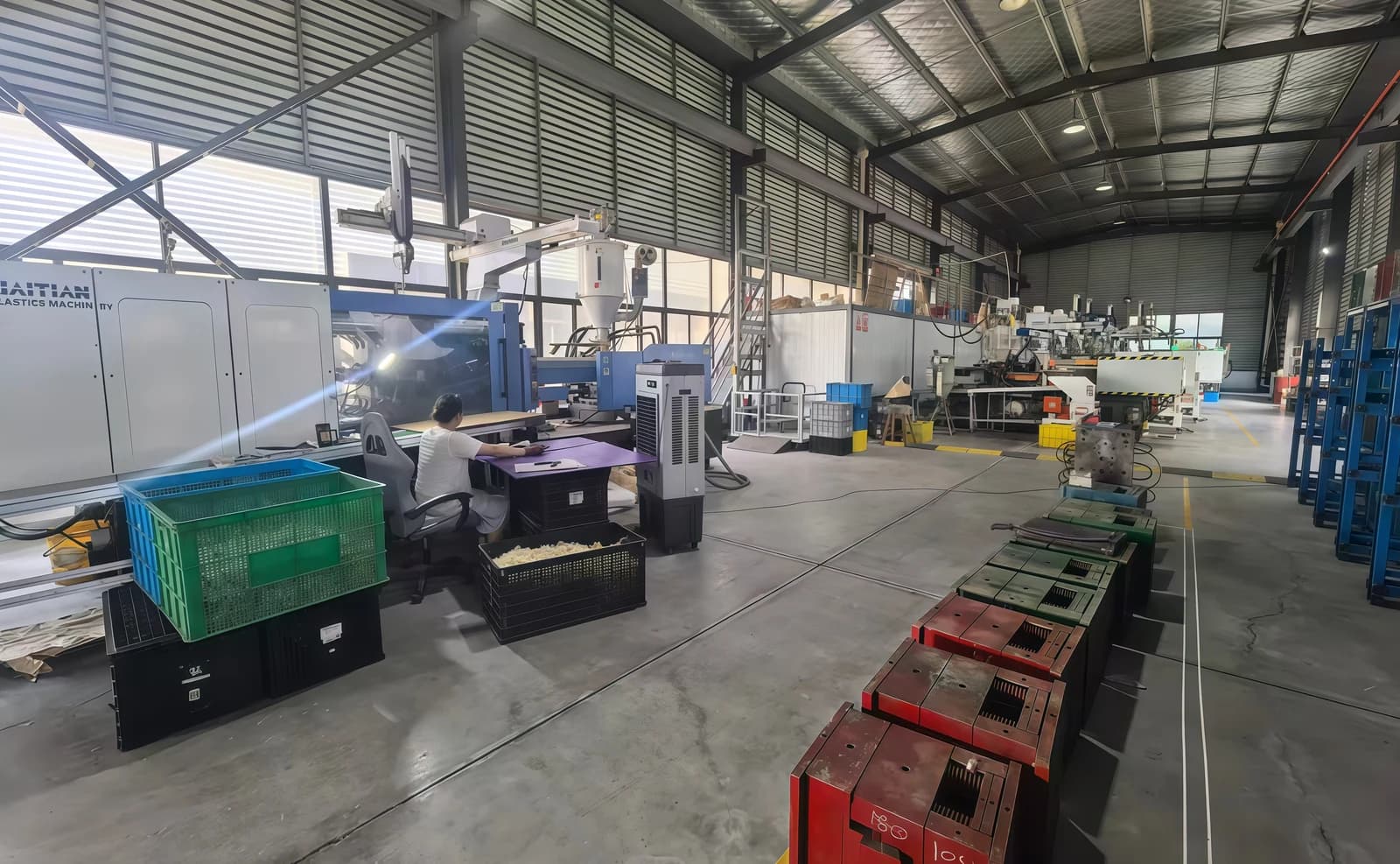

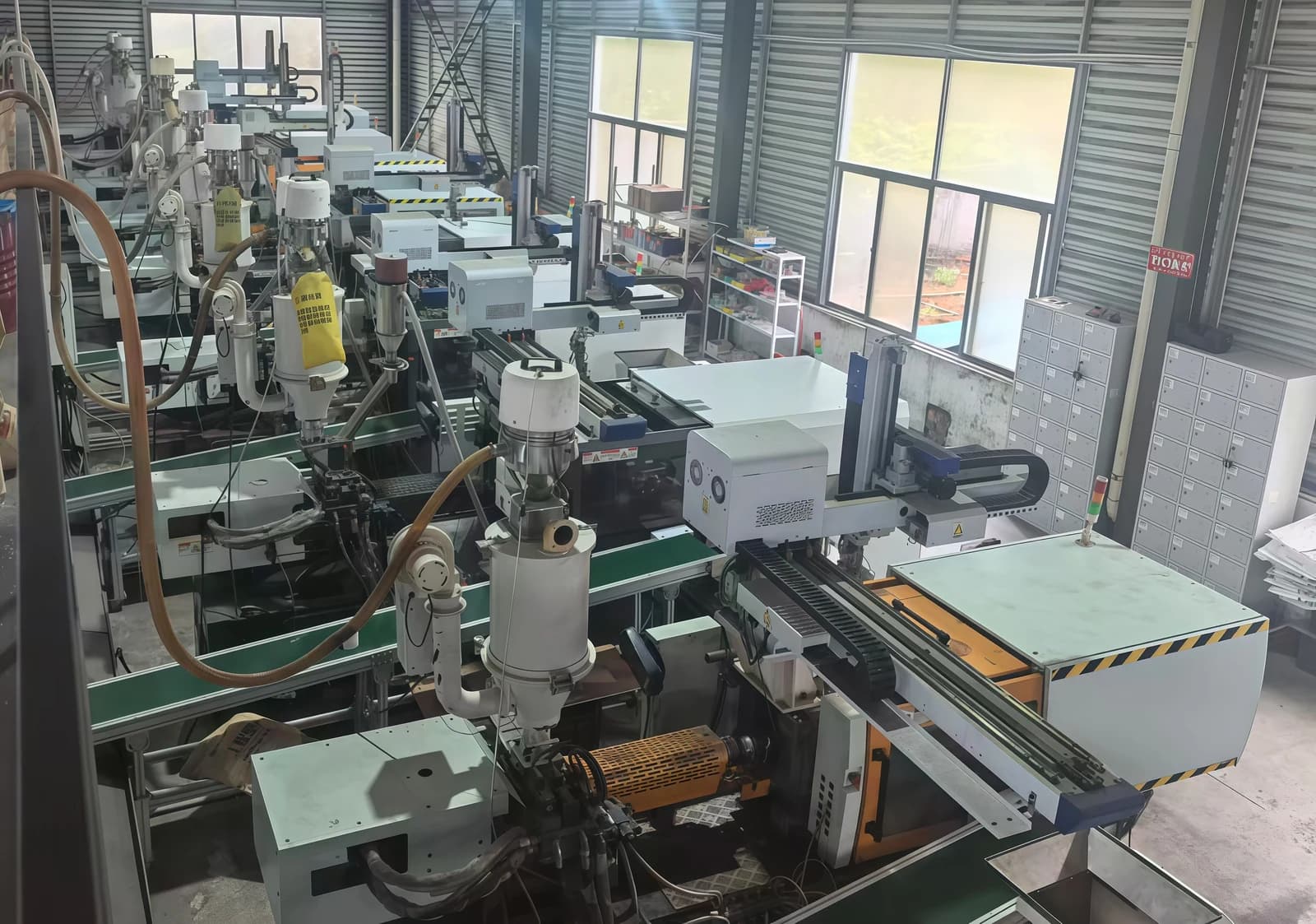

Once tooling is approved, parts are molded on our automated injection production line, with material feeding and part take-out handled by the line.
Material and colour are set per project, so the same workshop can run different interior components.
- Automated injection lines
- 1
| Equipment | Quantity | Notes |
|---|---|---|
| Injection molding machine · HX98 | 1 | Injection molding · Manufacturer: 台达 |
| Injection molding machine · HX138 | 2 | Injection molding · Manufacturer: 海雄 |
| Injection molding machine · HX158 | 1 | Injection molding · Manufacturer: 海雄 |
| Injection molding machine · HX168 | 1 | Injection molding · Manufacturer: 海雄 |
| Injection molding machine · HX208 | 1 | Injection molding · Manufacturer: 海雄 |
| Injection molding machine · HX288 | 1 | Injection molding · Manufacturer: 海雄 |
| Injection molding machine · MA3600 | 1 | Injection molding · Manufacturer: 海天 |
| Material dryer | 9 | Drying · Manufacturer: 海雄 |
| Beside-the-press granulator | 5 | Granulation · Manufacturer: 海雄 |
| Three-axis robot | 8 | Part removal · Manufacturer: 海雄 |
Step 03
Assembly
Louvres, latches and moving parts brought together by hand.

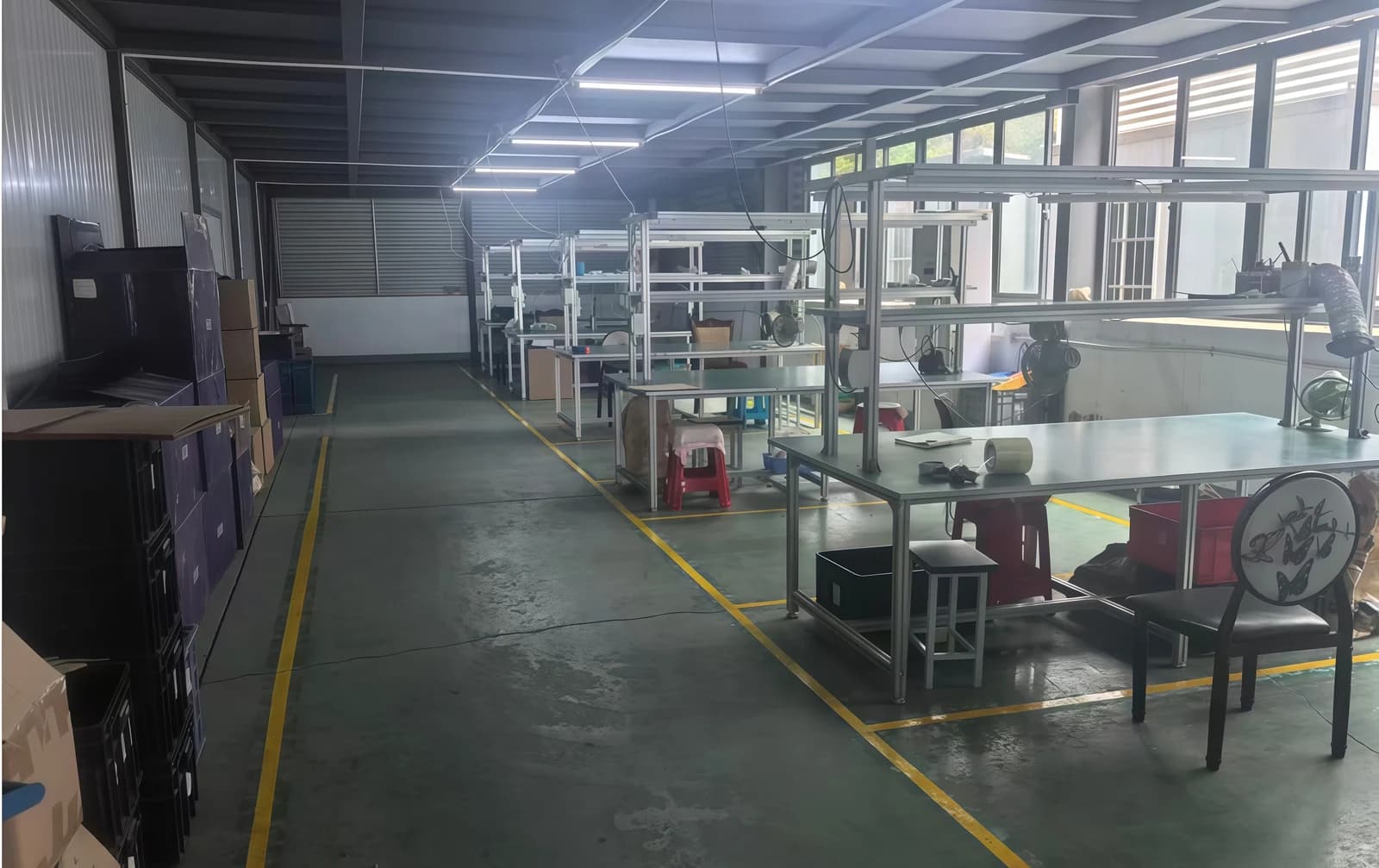

Molded parts move to the assembly workshop, where vent louvres, control knobs, latch mechanisms and other moving elements are fitted together.

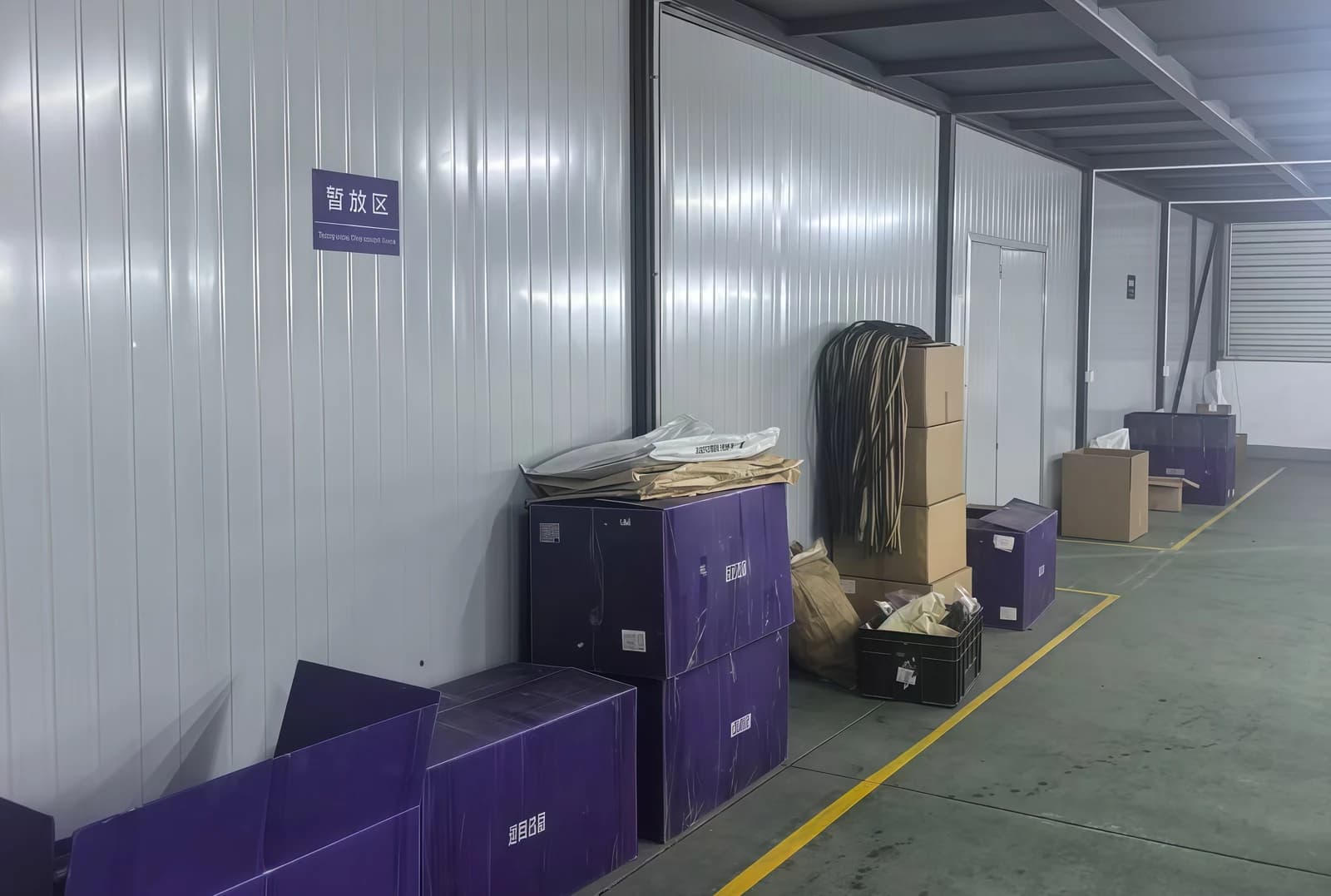

Assembly benches sit beside incoming and outgoing crates so parts stay organised from one stage to the next.
- Workshops on site
- 4
Step 04
Storage and dispatch
Organised holding of finished parts ahead of shipping checks.

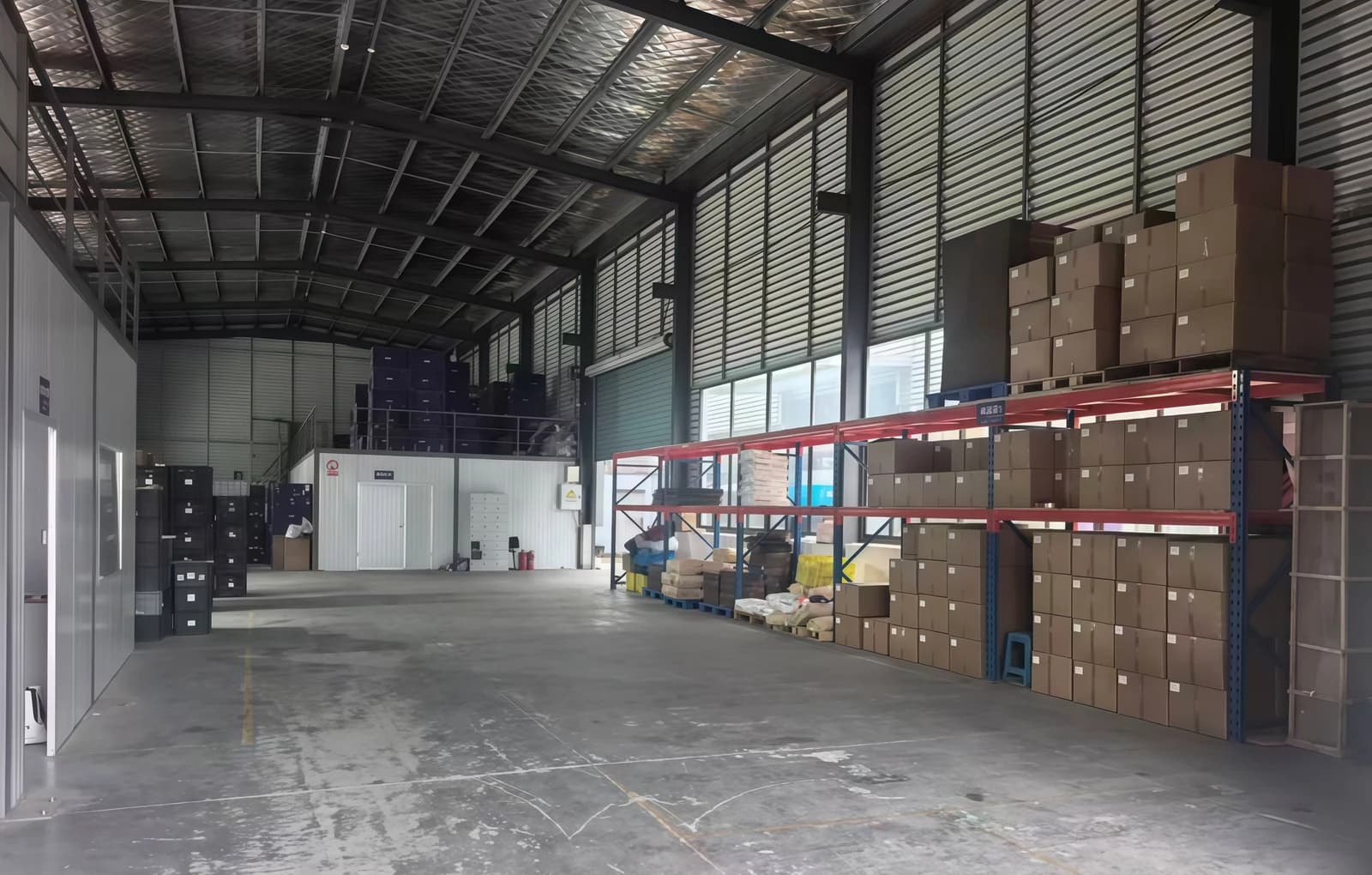

Finished components are held in storage and packed before they leave the site. A shipping check closes each order.
Ask us about packing for your project when you send your inquiry.
- Production site
- 2,000 m²
Planning a new component?
Share your drawings and requirements. We will review them with you and confirm the tooling approach before anything is made.
